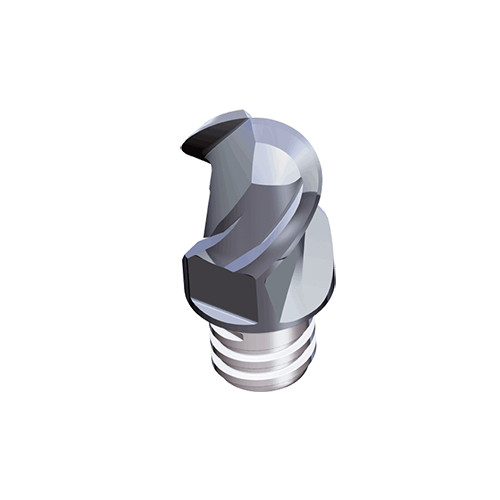

MXBE160L12-BGA02S10 UF10
Interchangeable solid carbide Ball nose end mill heads with 2 flute for precision machining of aluminum

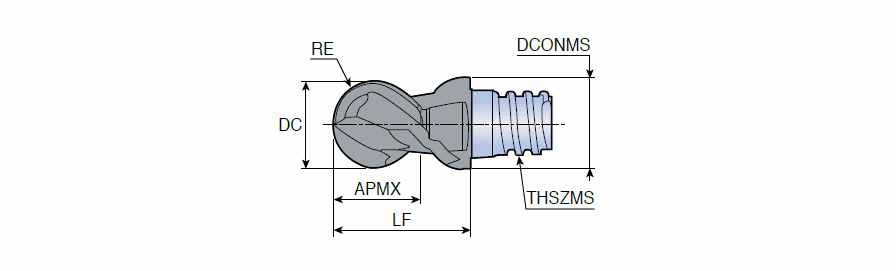

| Application | | Profiling | Solid Carbide End Mills | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 16 mm | Grade | UF10 |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 7.98 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S10 | Protruding Length (LPR) | 20.5 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Unit | M |
| Functional Length (LF) | 20.5 mm |
Product Features
| Family Description | Interchangeable solid carbide Ball nose end mill heads with 2 flute for precision machining of aluminum | FamilyName | MXBE-BGA02 (Ball) |
| Remarks | Wrench should be ordered separately TTA101 grade : ta C coating | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0735
Name
Solid End Mill Heads
FamilyName
MXBE-BGA02 (Ball)
BrandName
Taegutec
