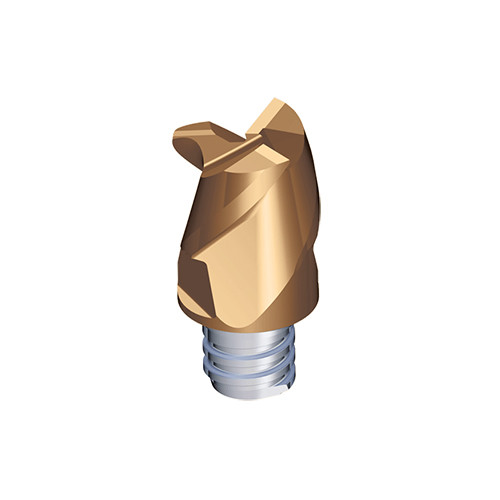

MXEE080L05R00-03S05 TT5523
Interchangeable solid carbide flat type end mill heads with 3 flute for general purpose
| Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | | Flute Helix Angle (FHA) | 45 Degrees |

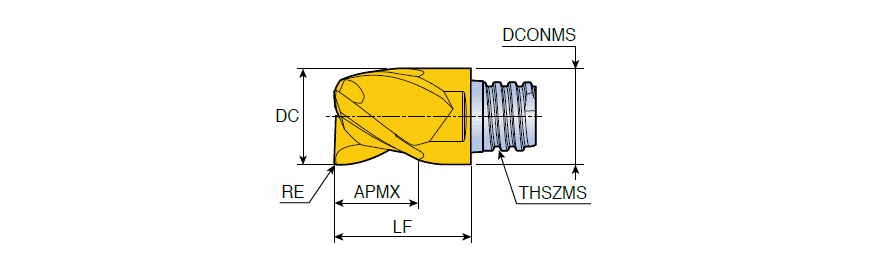

| Cutting Diameter (DC) | 8 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | - | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S05 | Protruding Length (LPR) | 10 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 7.7 mm | Unit | M |
| Functional Length (LF) | 10 mm |
Product Features
| Family Description | Interchangeable solid carbide flat type end mill heads with 3 flute for general purpose | FamilyName | MXEE-03 (H.A 45, general) |

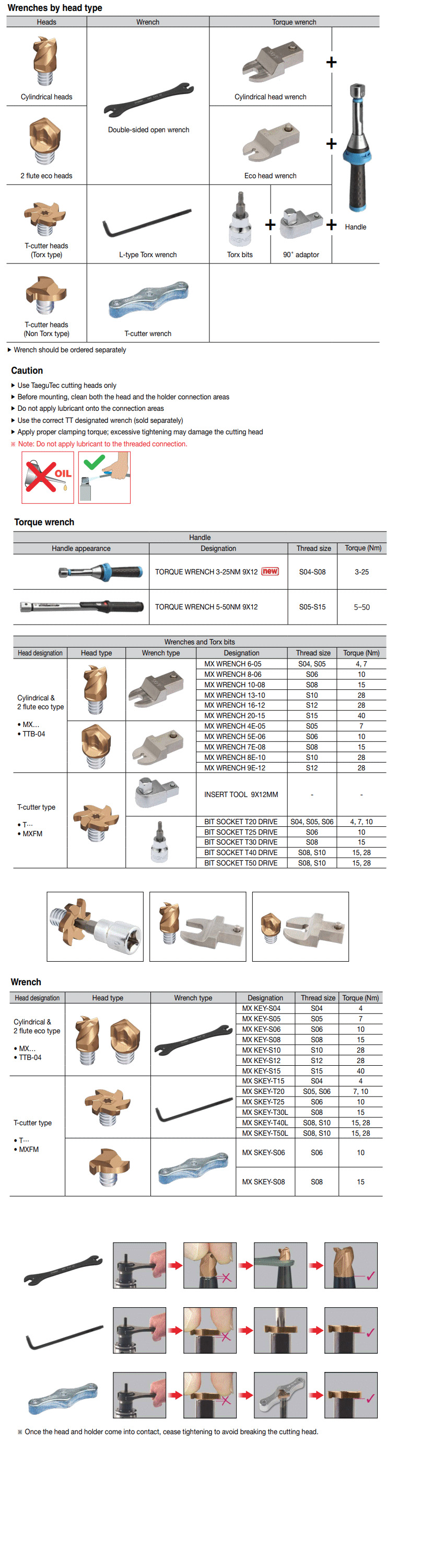

| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0130
Name
Solid End Mill Heads
FamilyName
MXEE-03 (H.A 45, general)
BrandName
Taegutec
