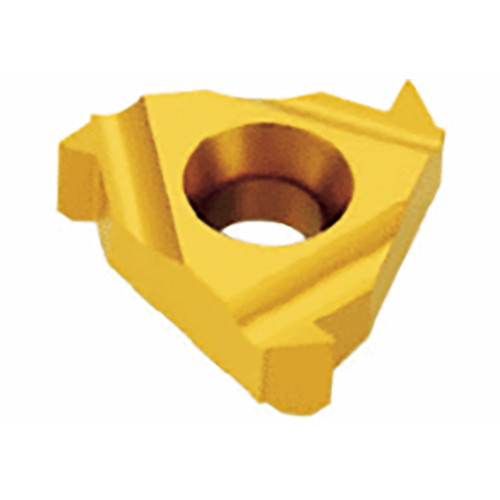

22IR 6 ABUT TT9030

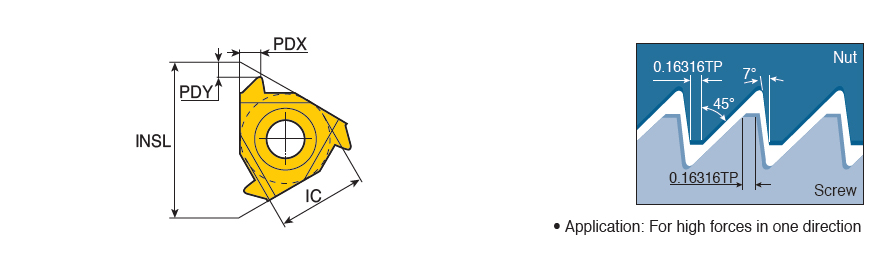

Internal American Buttress threading inserts for high force transmission in one direction
| Inscribed Circle Diameter (IC) | 12.7 mm | Application | | Internal Threading | |
| Insert Length (INSL) | 22 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 6 | Measurement Type | Metric |
| Grade | TT9030 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal American Buttress threading inserts for high force transmission in one direction | FamilyName | IR/L-ABUT |
| Remarks | ANSI B1.9 1973 class 2 | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0110
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-ABUT
BrandName
Taegutec
