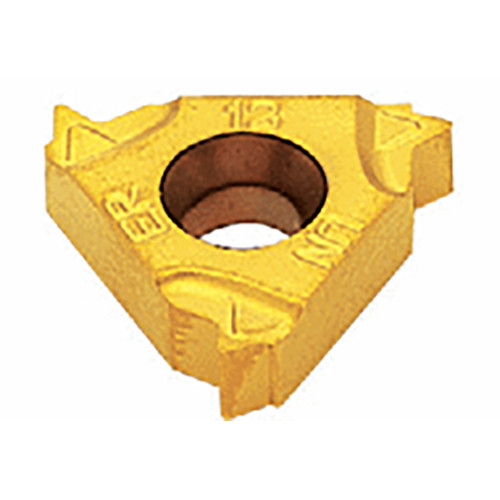

16ER 13 UN TT7010

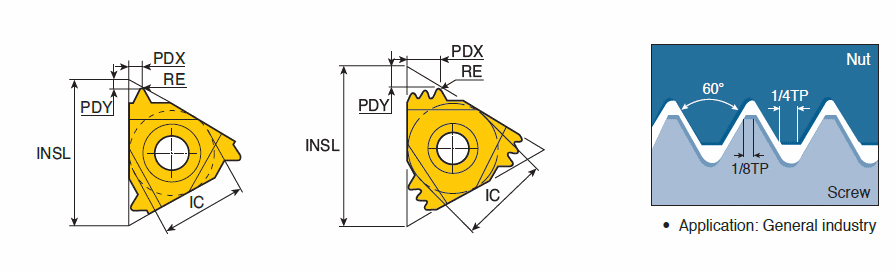

External american UN full profile (UN, UNC, UNF, UNEF) threading inserts
| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 16 mm | Application | | External Threading | |
| Threads per Inch (TPI) | 13 Threads/ | Applicable Material | | Steel | Cast Iron | |
| Corner Radius (RE) | 0.24 mm | Measurement Type | Metric |
| Grade | TT7010 | Body Material | Carbide |
| Coating | TiN | Unit | M |
Product Features
| Family Description | External american UN full profile (UN, UNC, UNF, UNEF) threading inserts | FamilyName | ER/L-UN |
| Remarks | Tolerance: Class 2A | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0046
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-UN
BrandName
Taegutec
