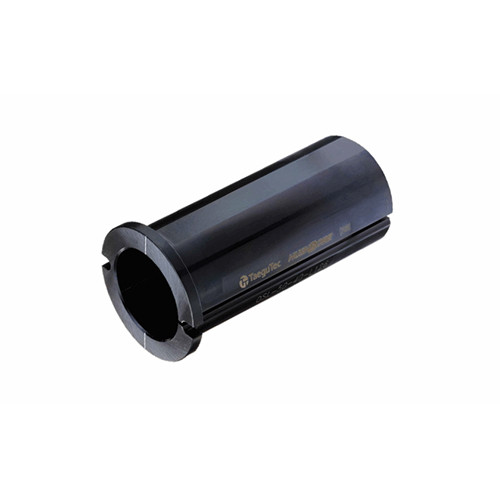

QSL-60-32-L156
HUSH-BORE Sleeves for deep boring machining up to 10 times with anti-vibration damping round shank

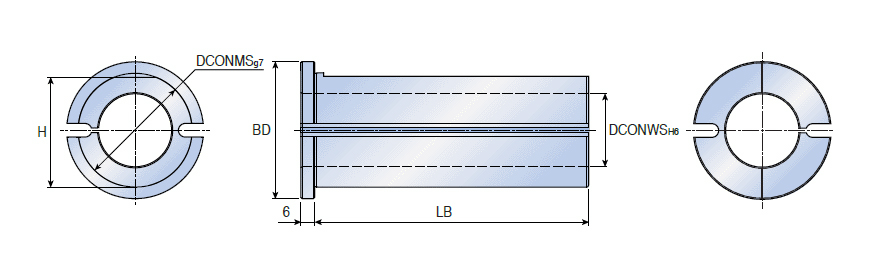

| Connection Diameter Machine Side (DCONMS) | 60 mm | Body Diameter (BD) | 70 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Body Material | Steel |
| Shank Length (LS) | 150 mm | Measurement Type | Metric |
| Shank Height (H) | 58.5 mm | Unit | M |
Product Features
| Family Description | HUSH-BORE Sleeves for deep boring machining up to 10 times with anti-vibration damping round shank | FamilyName | QSL (HUSH-BORE) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
2.4200
Name
Holders
FamilyName
QSL (HUSH-BORE)
BrandName
Taegutec
