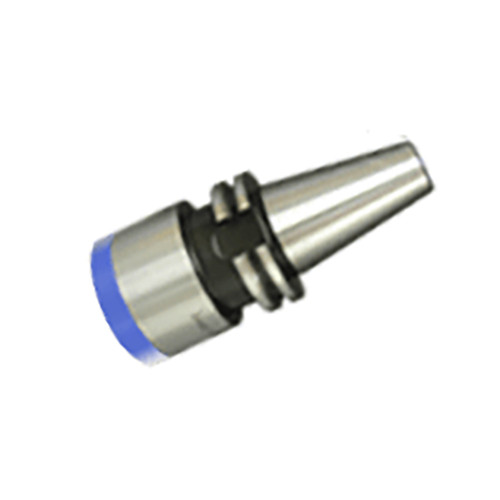

SKA 50-MB80

Name: SKA 50-MB80
Brand: MPT
SKU: TTK4652408
Price: 781.11 AUD
Availability: InStock

MB modular connection system with DIN69871 form A/ISO 7388/1 taper shank.

Item # TTK4652408

Brand: Taegutec

Mfr#: 4652408

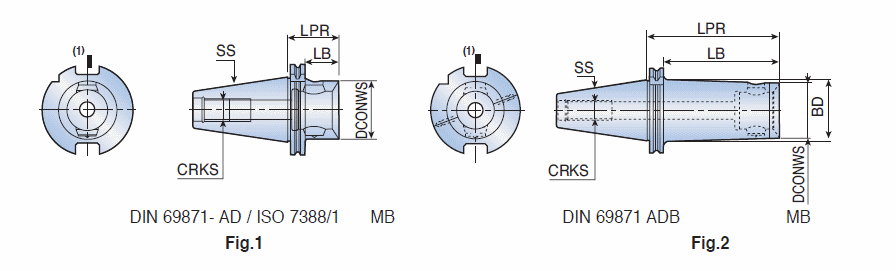

Protruding Length (LPR)

62 mm

Connection Retention Knob Thread Size (CRKS)

M24

Connection Diameter Machine Side (DCONMS)

50 mm

Body Material

Steel

Body Diameter (BD)

Measurement Type

Metric

Application

| MPT BORE System |

Unit

Product Features

Family Description

MB modular connection system with DIN69871 form A/ISO 7388/1 taper shank.

COO

ITALY

Remarks

(1)Cutting edge position. Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Weight per item

3.5200
