HSK E 40 SRK 3X 80

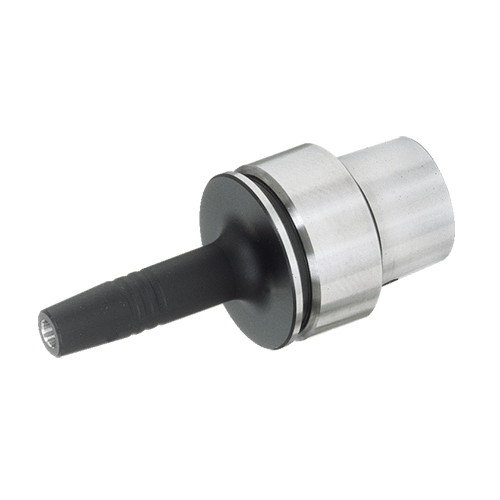

Thermal shrinking chucks with HSK DIN 69893 form E taper shanks for solid carbide tools

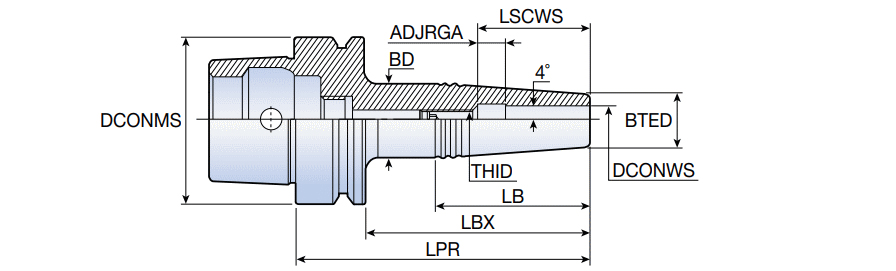

Connection Diameter Workpiece Side (DCONWS) | 3 mm | Clamping Length Workpiece Side (LSCWS) | 16 mm |
Shank Size (SS) | 40 mm | Usable Length (LU) | 100 mm |
Body Length (LB) | 64 mm | Measurement Type | Metric |
Body Diameter_2 (BD_2) | 10 mm | Body Material | Steel |
Application | | HSK DIN 69893 | | Unit | M |
Thread Designation Inside (THID) | M5 |






Product Features
Family Description | Thermal shrinking chucks with HSK DIN 69893 form E taper shanks for solid carbide tools | FamilyName | HSK E-SRK |
COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.3500
Name
Shrink Fit Holders
FamilyName
HSK E-SRK
BrandName
Taegutec
