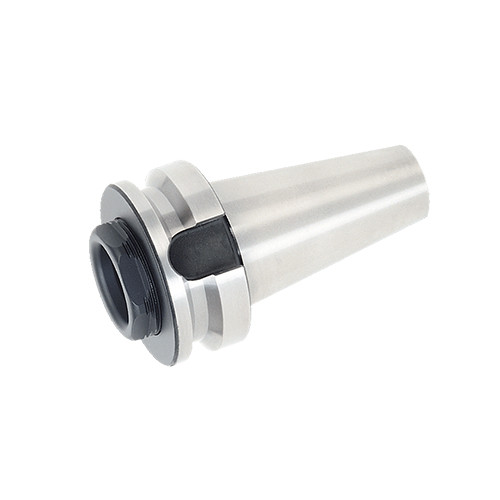

BT30 ER 20 SHORT
Short ER collet chucks with BT MAS-403 form AD taper shanks

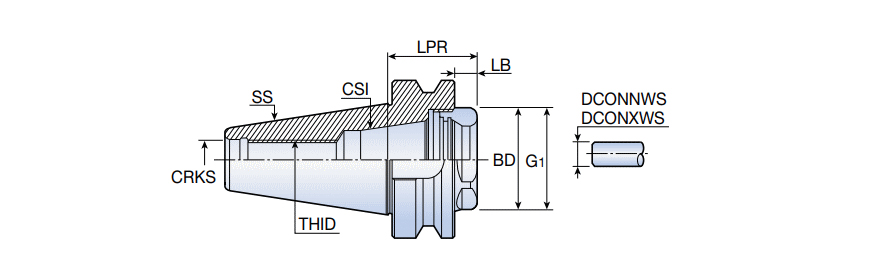

| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 25 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length Maximum (LBX) | 27.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 30 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 | Body Material | Steel |
| Application | | BT MAS 403 | | Unit | M |
| Nose Length | 5.2 mm |
Product Features
| Family Description | Short ER collet chucks with BT MAS-403 form AD taper shanks | FamilyName | BT-ER-SHORT |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | INDIA |
Shipping Info
Weight per item
0.3650
Name
Collet Chucks
FamilyName
BT-ER-SHORT
BrandName
Taegutec
