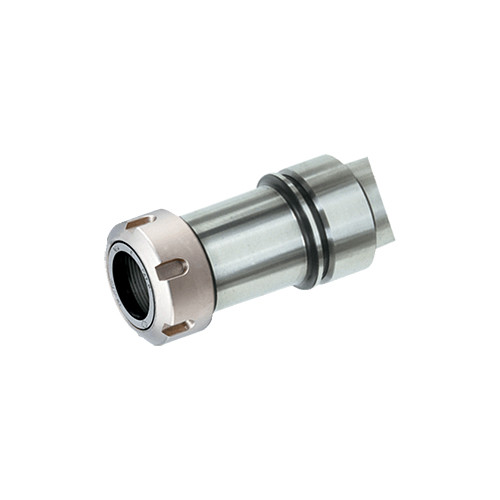

HSK E 50 ER 20X80
DIN 6499 ER collet chucks with HSK DIN 69893 form E taper shanks

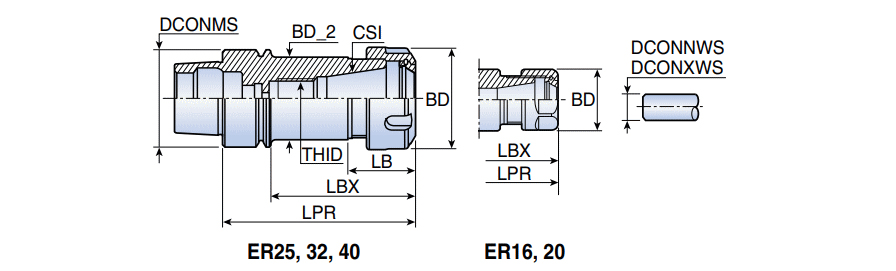

| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 34 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length Maximum (LBX) | 80 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 | Body Material | Steel |
| Application | | HSK DIN 69893 | | Unit | M |
| Nose Length | 54 mm |
Product Features
| Family Description | DIN 6499 ER collet chucks with HSK DIN 69893 form E taper shanks | FamilyName | HSK E-ER |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.7000
Name
Collet Chucks
FamilyName
HSK E-ER
BrandName
Taegutec
