DIN69871 50 ER 16X200

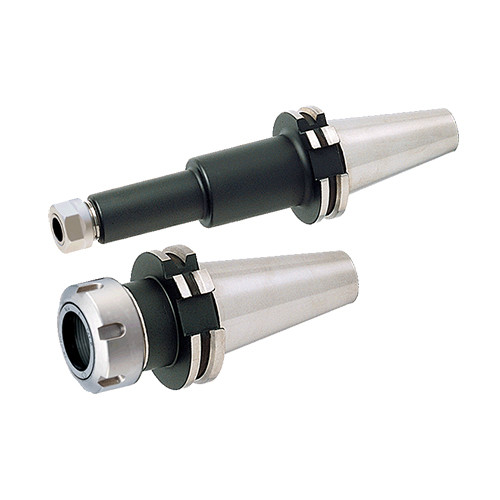

DIN 6499 ER collet chucks with DIN 69871 form ADB taper shanks

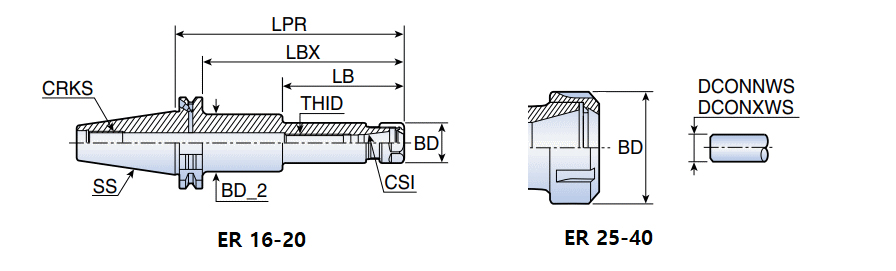

| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 28 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Length Maximum (LBX) | 200 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M10 | Body Material | Steel |
| Application | | DIN 69871 | | Unit | M |
| Nose Length | 180.9 mm |
Product Features
| Family Description | DIN 6499 ER collet chucks with DIN 69871 form ADB taper shanks | FamilyName | DIN69871-ER |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | TURKEY |
Shipping Info
Weight per item
3.7600
Name
Collet Chucks
FamilyName
DIN69871-ER
BrandName
Taegutec
