TCD-147-K TT9080

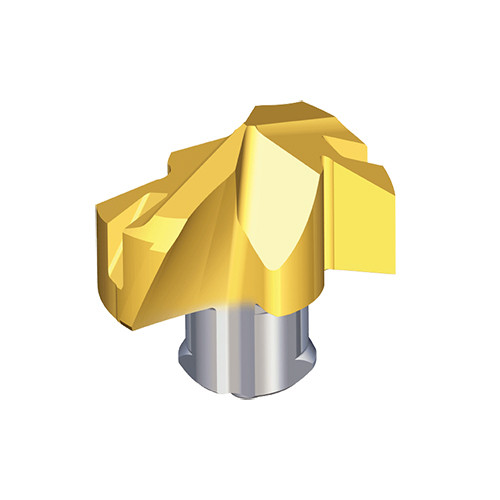

Exchangeable drill heads for cast iron of ISO K material

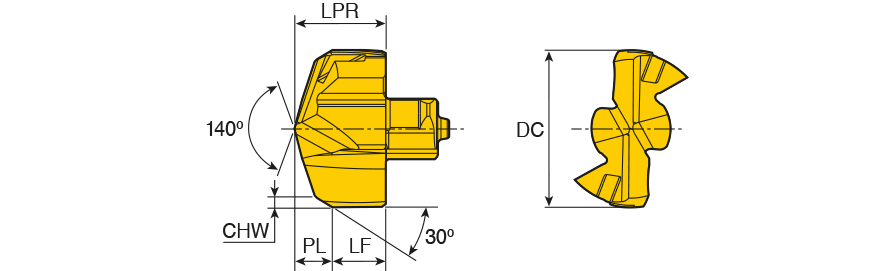

Cutting Diameter (DC) | 14.7 mm | Cutting Edge Material | Carbide |
Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
Application | | Drilling | Hole Making Inserts | | Point Length (PL) | 3.49 mm |
Grade | TT9080 | Coating | TiAlN+TiN |
Protruding Length (LPR) | 8.1 mm | Corner Chamfer Width (CHW) | 1.6 mm |
Insert Seat Size Code (SSC) | 14 | Body Material | Carbide |
Functional Length (LF) | 4.66 mm | Unit | M |

Product Features
Family Description | Exchangeable drill heads for cast iron of ISO K material | COO | S.KOREA |
Shipping Info
Weight per item
0.0200
