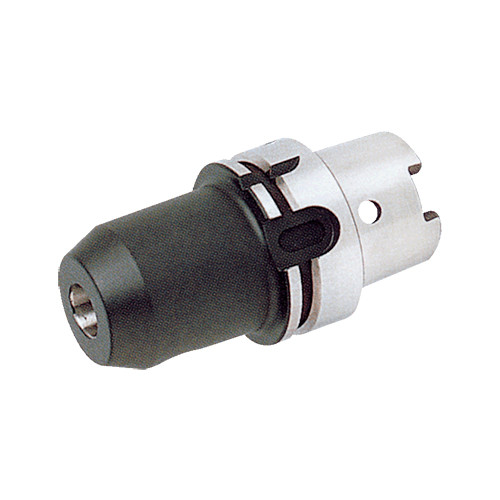

HSK A 100 EM 16X100
Weldon DIN 6359/DIN 6359 form B end mill holders with HSK DIN69893 form A taper shanks

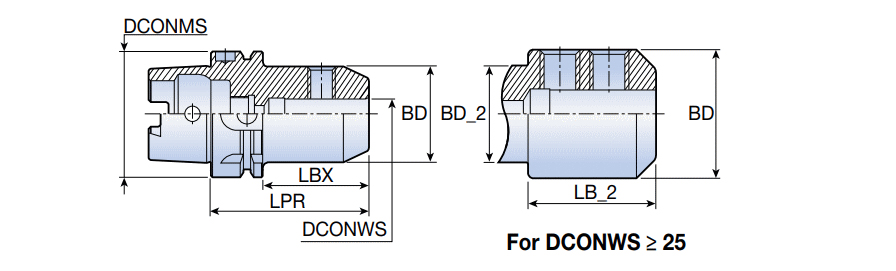

| Shank Type | Weldon | Application | | HSK DIN 69893 | |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Measurement Type | Metric |
| Body Diameter (BD) | 48 mm | Shank Size (SS) | 100 mm |
| Body Length Maximum (LBX) | 100 mm | Body Material | Steel |
| Nose Length | 71 mm | Unit | M |
Product Features
| Family Description | Weldon DIN 6359/DIN 6359 form B end mill holders with HSK DIN69893 form A taper shanks | FamilyName | HSK A-EM (Endmill Holer) |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
Weight per item
3.0500
Name
End Mill Holders
FamilyName
HSK A-EM (Endmill Holer)
BrandName
Taegutec
