DIN69871 40 EM 25X45

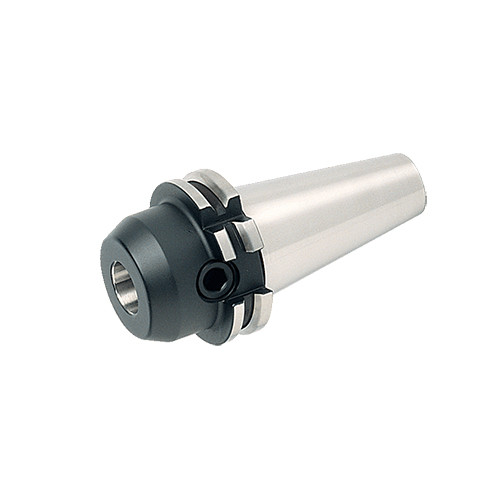

Short Weldon DIN6359 / DIN 1835 form B end mill holders with DIN 69871 form AD taper shanks

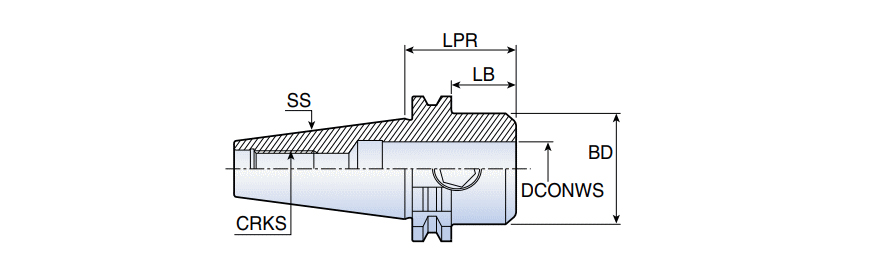

| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 49 mm | Shank Size (SS) | 40 mm |
| Body Length Maximum (LBX) | 45 mm | Body Material | Steel |
| Nose Length | 25.9 mm | Unit | M |
| Application | | DIN 69871 | |
Product Features
| Family Description | Short Weldon DIN6359 / DIN 1835 form B end mill holders with DIN 69871 form AD taper shanks | FamilyName | DIN69871-EM (Short Endmill Holder) |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | TURKEY |
Shipping Info
Weight per item
1.0050
Name
End Mill Holders
FamilyName
DIN69871-EM (Short Endmill Holder)
BrandName
Taegutec
