TQJ 27-1.25-0.10 TT9080

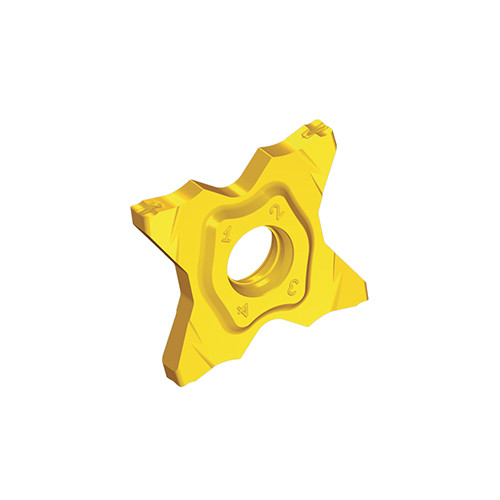

Unique inserts with 4 cutting edge for Parting & Grooving of soft material, tubes, small diameter & thin-walled parts
| Cutting Width (CW) | 1.25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Inserts | Parting | |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 3.5 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Unique inserts with 4 cutting edge for Parting & Grooving of soft material, tubes, small diameter & thin-walled parts | FamilyName | TQJ 27 |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0158
Name
Parting Off Indexable Inserts
FamilyName
TQJ 27
BrandName
Taegutec
