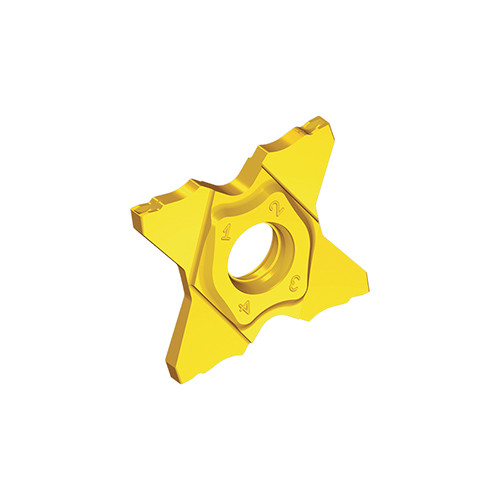

TQC 27-2.87-0.20 TT9080
Unique inserts with 4 cutting edges for Parting and Grooving of hard materials in tough and general applications with maximum depth of cut 6.4 mm

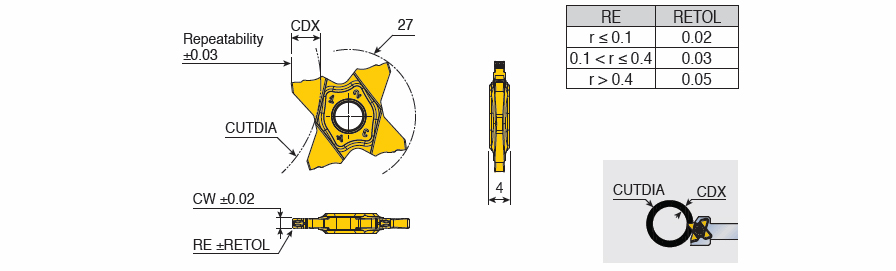

| Cutting Width (CW) | 2.87 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Inserts | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |

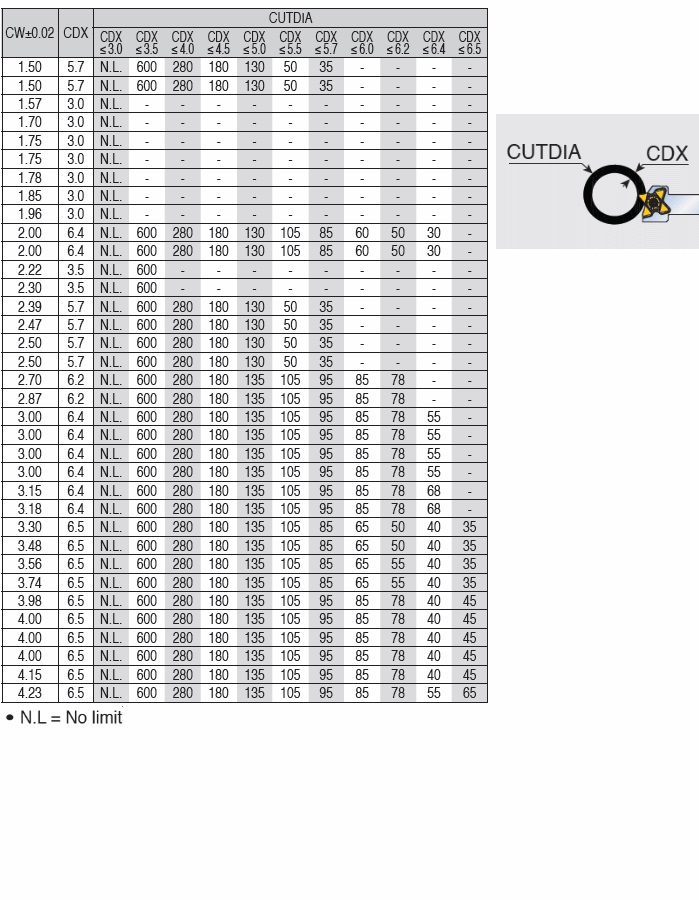

| Cutting Depth Maximum (CDX) | 6.2 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Unique inserts with 4 cutting edges for Parting and Grooving of hard materials in tough and general applications with maximum depth of cut 6.4 mm | FamilyName | TQC 27 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0164
Name
Parting Off Indexable Inserts
FamilyName
TQC 27
BrandName
Taegutec
