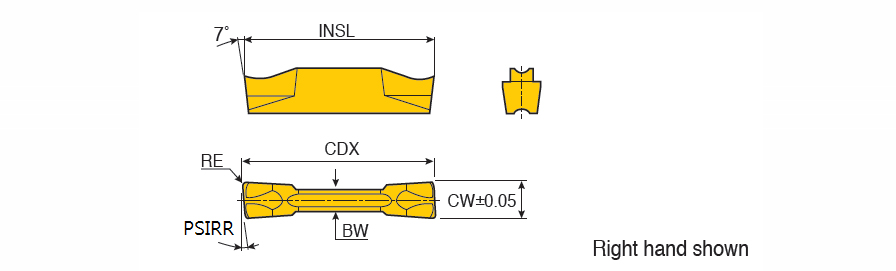

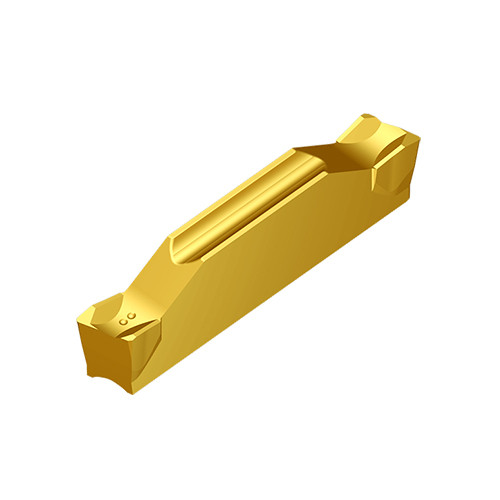

TDC 3-15R TT8020
| Cutting Width (CW) | 3 mm | Application | | Inserts | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 20 mm | Height | 4.7 mm |
| Cutting Depth Maximum (CDX) | 19 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
| Grade | TT8020 |
Product Features
| Family Description | Double ended inserts with lead angle & C-Type chip breaker for Parting of hard materials & tough applications in medium to high feed of steel, alloy steel and stainless steel | FamilyName | TDC-R/L (Double-ended) |
| COO | S.KOREA | BrandName | TaeguTec |
Shipping Info
Weight per item
0.0043
Name
Parting Off Indexable Inserts
FamilyName
TDC-R/L (Double-ended)
BrandName
TaeguTec
