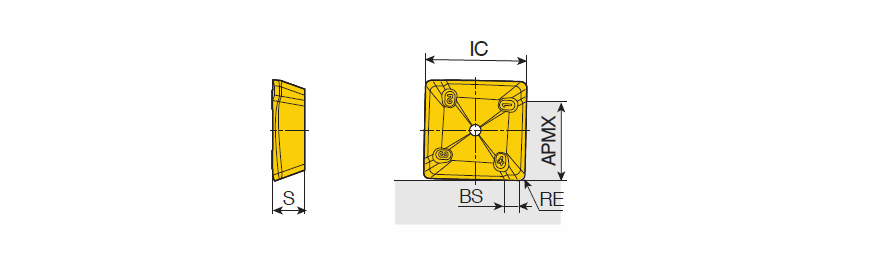

| Applicable Material | | Steel | Stainless Steel | | Grade | TT8525B |
| Application | | Facing | Inserts | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 17 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.2 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 13.6 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 21.85 mm | Body Material | Carbide |
| Insert Thickness (S) | 7 mm | Unit | M |
| Coating | MTCN-Al2O3-TiN |
Product Features

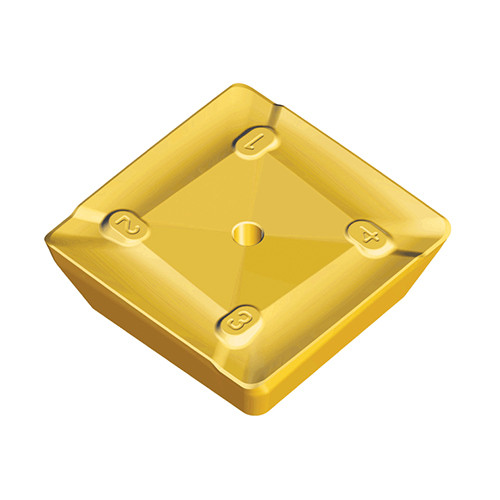

| Family Description | Thicker positive square inserts of 4 cutting edges with 90° face mills for heavy industry | FamilyName | SEKX 21 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0402
Name
Milling Indexable Inserts
FamilyName
SEKX 21
BrandName
Taegutec
