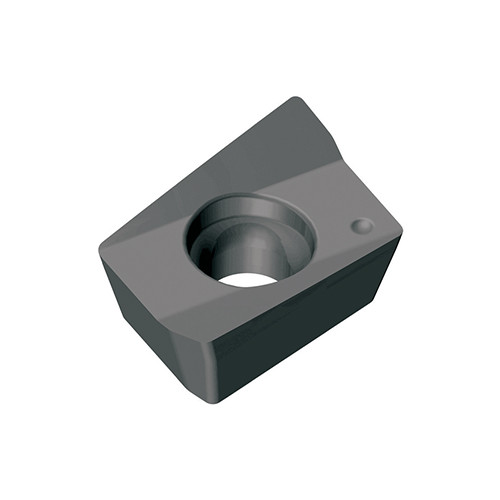

AXCT 060204R-L TT5525
High positive ground inserts with two helical cutting edges in smooth cutting & low cutting force for miniature tools of Swiss automatic lathe
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Application | | Facing | Inserts | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.6 mm | Body Material | Carbide |
| Coating | AlTiCrN | Unit | M |
| Grade | TT5525 |
Product Features
| Family Description | High positive ground inserts with two helical cutting edges in smooth cutting & low cutting force for miniature tools of Swiss automatic lathe | FamilyName | AXCT 0602-L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0017
Name
Milling Indexable Inserts
FamilyName
AXCT 0602-L
BrandName
Taegutec
