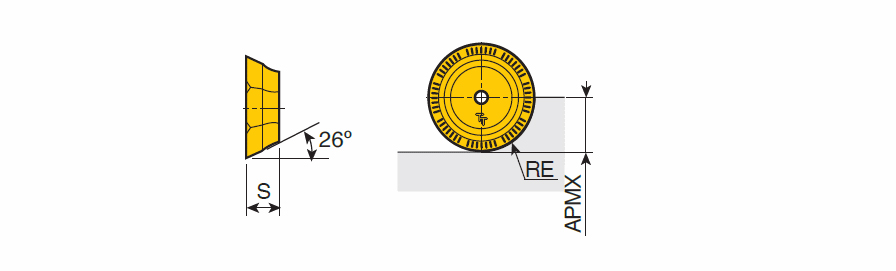

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.14 mm/tooth |
| Cutting Edge Length (L) | 9.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 9.5 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 19 mm | Body Material | Carbide |
| Insert Thickness (S) | 5.3 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features

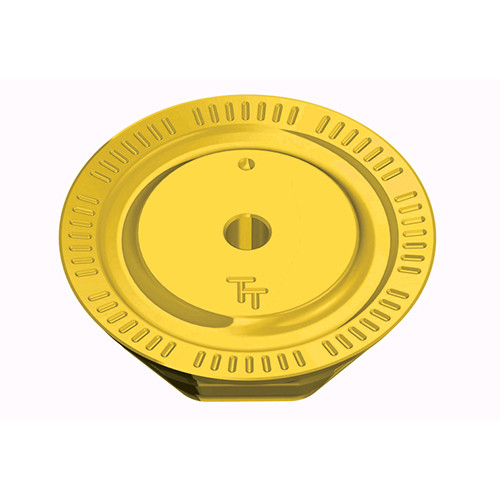

| Family Description | Round milling inserts. | FamilyName | RFMR 19-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0178
Name
Milling Indexable Inserts
FamilyName
RFMR 19-M
BrandName
Taegutec
