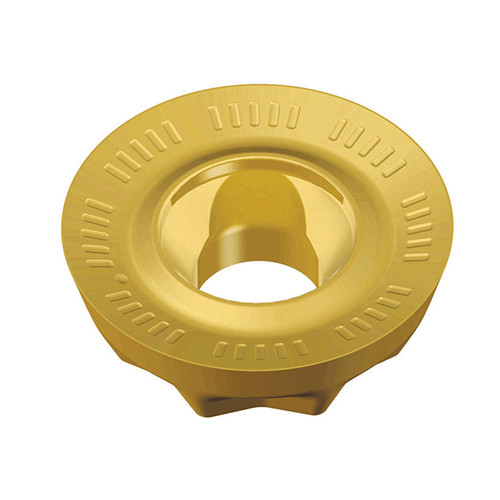

RXMX 1604-ML TT9080
Positive round inserts with sharp cutting edges for exotic materials
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |

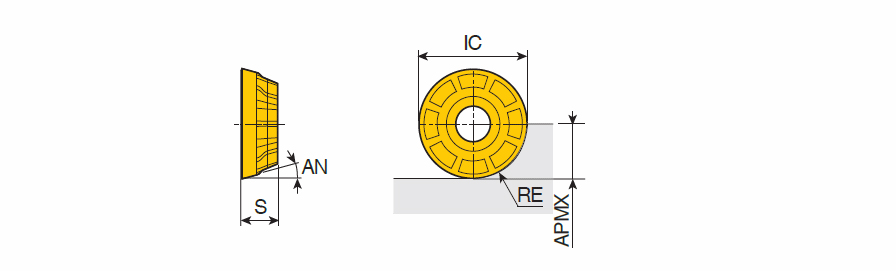

| Cutting Edge Length (L) | 8 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 6.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 16 mm | Body Material | Carbide |
| Insert Thickness (S) | 4.76 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Positive round inserts with sharp cutting edges for exotic materials | FamilyName | RXMX 10/12/16-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0097
Name
Milling Indexable Inserts
FamilyName
RXMX 10/12/16-ML
BrandName
Taegutec
