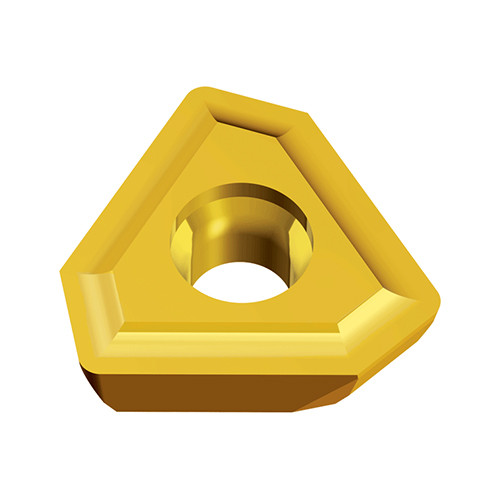

TPMX 140308L-G TT5030
Deep drilling inserts for TBTA-R Counter boring heads with close tolerance covering dia 40-129.99 mm

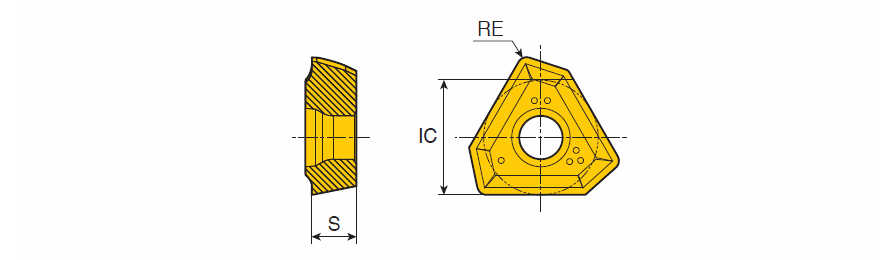

| Insert Thickness (S) | 3.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 8.45 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT5030 | Unit | M |
| Application | | DeepDrill | Hole Making Inserts | |
Product Features
| Family Description | Deep drilling inserts for TBTA-R Counter boring heads with close tolerance covering dia 40-129.99 mm | COO | JAPAN |
Shipping Info
Weight per item
0.0000
