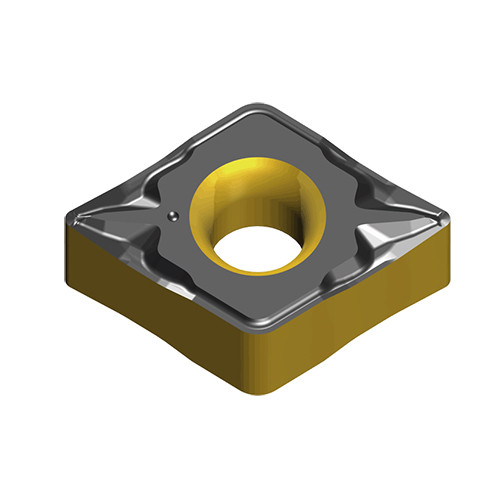

XNMG 090404 FLP TT8105B

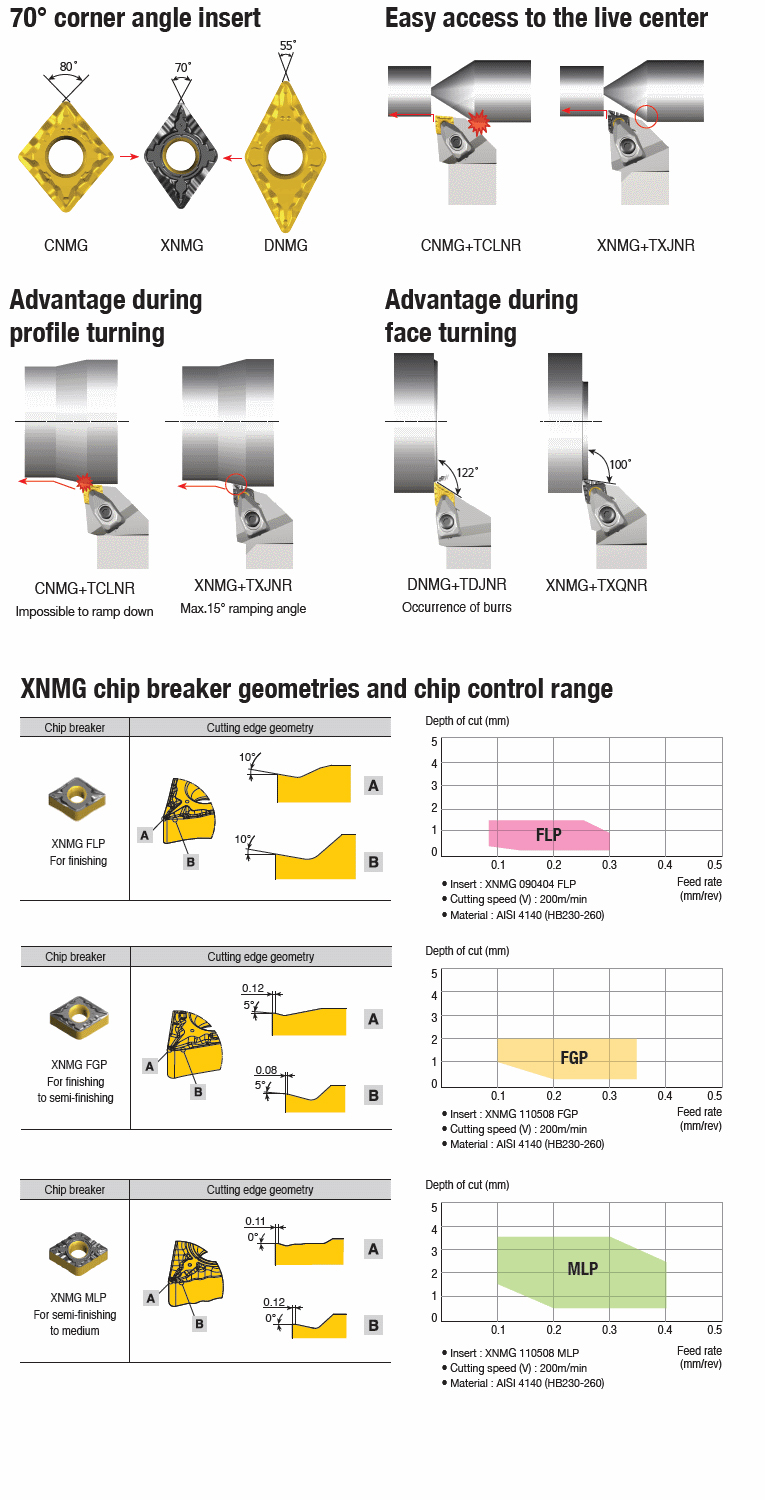

Unique negative 70° rhombic inserts for finishing of steels
| Applicable Material | | Steel | | Grade | TT8105B |
| Application | | Ext 100° App 70°Diamond | Ext 93° App 70°Diamond | Inserts | Int 100° App 70° Diamond | | Min D.O.C. | 0.2 mm |

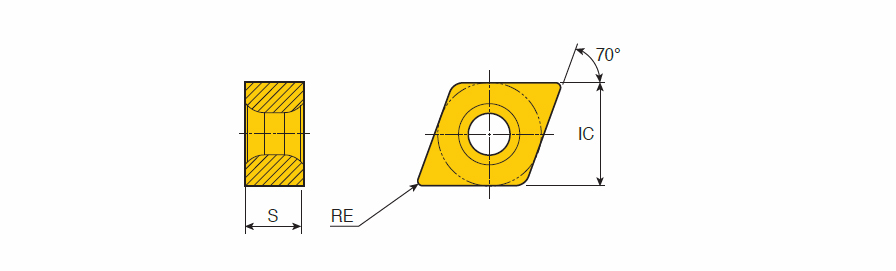

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 9.25 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 8.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN-Al203-TiN | Unit | M |
Product Features
| Family Description | Unique negative 70° rhombic inserts for finishing of steels | FamilyName | XNMG-FLP (RHINO-X) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0050
Name
Turning Indexable Inserts
FamilyName
XNMG-FLP (RHINO-X)
BrandName
Taegutec
