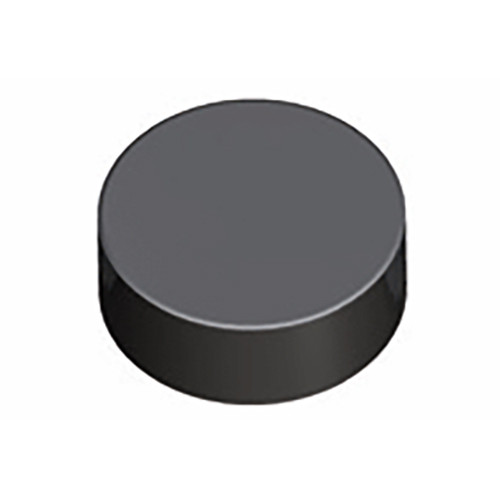

RNGN 120400 E TC430
Negative Round ground Ceramic insert without hole for cast iron & hardened steel machining
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Depth of Cut Maximum (APMX) | 4 mm |

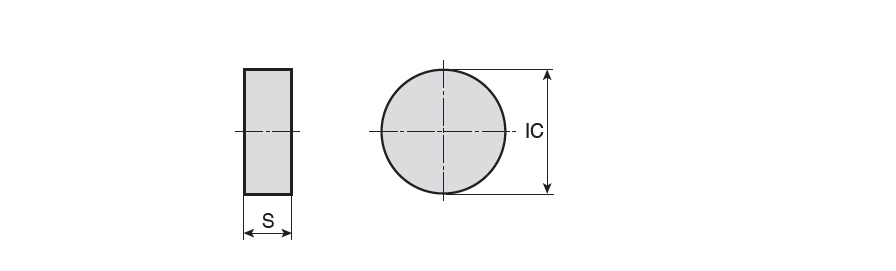

| Insert Thickness (S) | 4.76 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Cutting Edge Material | Whiskers | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TC430 | Unit | M |
Product Features
| Family Description | Negative Round ground Ceramic insert without hole for cast iron & hardened steel machining | FamilyName | RNGN-CERAMIC |
| Remarks | No Notation: 0.2 × 25~ without Honing T6: Land 0.10 × 20~ without Honing S6: Land 0.10 × 20~ with Honing E: Honing 0.02 ~ 0.03 , E04: Honing 0.04 ~ 0.05 without Land U2: Double Land 1.5 × 15~, 0.15 × 30~ without Honing W2: Double Land 1.5 × 15~, 0.15 × 30~ without Honing | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0023
Name
Turning Indexable Inserts
FamilyName
RNGN-CERAMIC
BrandName
Taegutec
