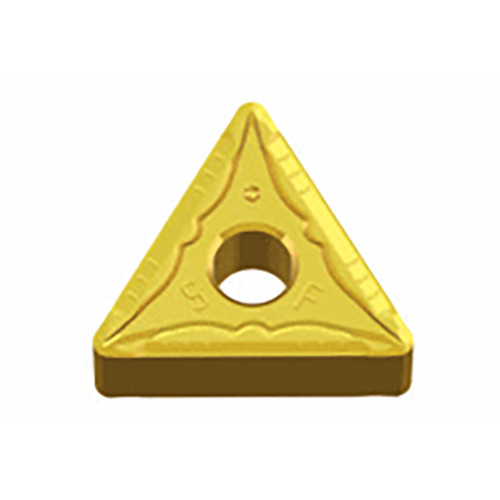

TNMG 160408 SF TT5080
Negative 60° Triangular inserts for finishing of stainless steel & heat resistant alloy
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT5080 |
| Application | | Ext 60° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.7 mm |

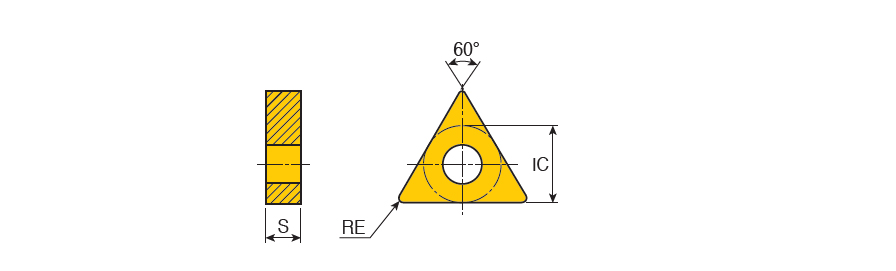

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | Negative 60° Triangular inserts for finishing of stainless steel & heat resistant alloy | FamilyName | TNMG-SF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0083
Name
Turning Indexable Inserts
FamilyName
TNMG-SF
BrandName
Taegutec
