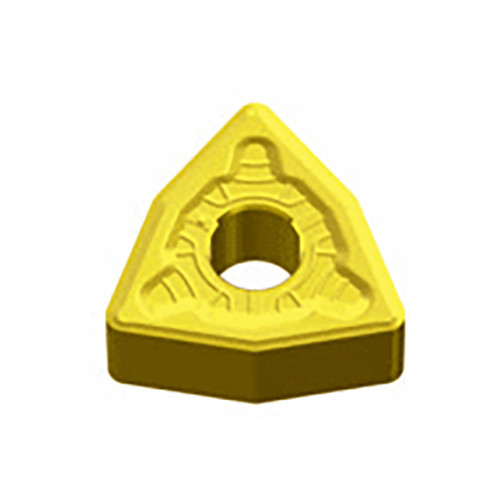

WNMG 060412 EM TT9225
Negative 80° Trigon inserts for medium machining of stainless steels
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9225 |
| Application | | Ext 95° App 80°Trigon | Inserts | Int 95° App 80° Trigon | | Min D.O.C. | 0.8 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 6.52 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al203+TiCN | Unit | M |
Product Features
| Family Description | Negative 80° Trigon inserts for medium machining of stainless steels | FamilyName | WNMG-EM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0066
Name
Turning Indexable Inserts
FamilyName
WNMG-EM
BrandName
Taegutec
