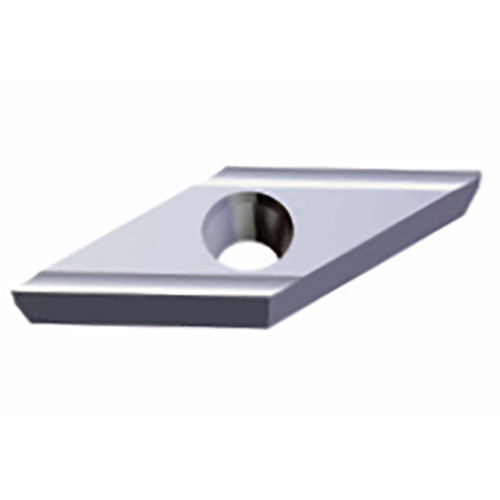

VBET 1103003 R-GW TT9020
Precision positive ground 35° Rhombic inserts with wiper geometry of good surface finish for super-finishing of small parts in steel, stainless steel & alloy steel
| Applicable Material | | Steel | Stainless Steel | | Grade | TT9020 |
| Application | | Ext 93° App 35° Diamond | Ext 93° App Sleeve 35° Diamond | Inserts | Int 100° App 70° Diamond | Int 93° App 35° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.1 mm |

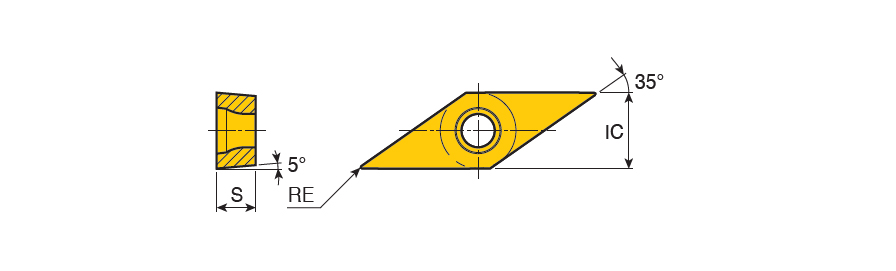

| Corner Radius (RE) | 0.03 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 11.1 mm | Min. Turning Feed (ft(min)) | 0.02 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | Precision positive ground 35° Rhombic inserts with wiper geometry of good surface finish for super-finishing of small parts in steel, stainless steel & alloy steel | FamilyName | VBET R/L-GW |
| Remarks | Wiper inserts should be applied to *VJBR/L holders | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0038
Name
Turning Indexable Inserts
FamilyName
VBET R/L-GW
BrandName
Taegutec
