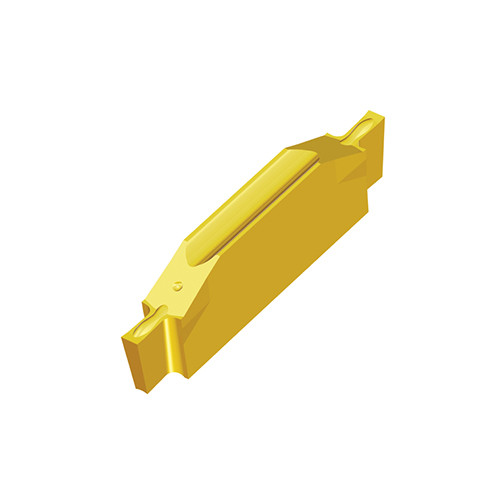

TDT 1.00-0.00 TT9080
Precision double-ended inserts for external grooving only

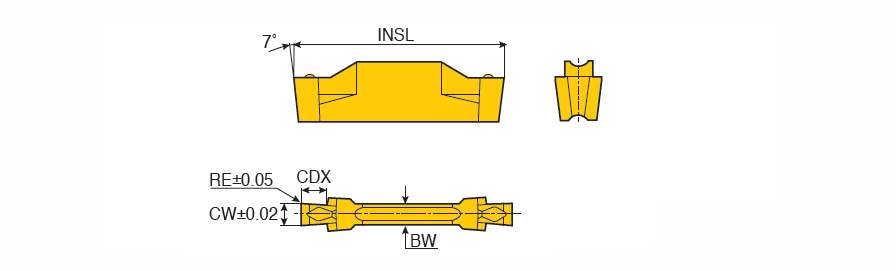

| Cutting Width (CW) | 1 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0 mm | Application | | Ext. Grooving | Inserts | |
| Cutting Depth Maximum (CDX) | 2.5 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 4.7 mm | Insert Seat Size Code (SSC) | 2 |
| Insert Length (INSL) | 20 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
Product Features
| Family Description | Precision double-ended inserts for external grooving only | FamilyName | TDT (External Grooving only) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0038
Name
Groove/Turn Indexable Inserts
FamilyName
TDT (External Grooving only)
BrandName
Taegutec
