| Shank Size (SS) | 40 mm | Measurement Type | Metric |
| Body Diameter (BD) | 17 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Retention Knob Thread Size (CRKS) | M16 | Cutter Outer Diameter (D1) | 19 mm |
| Overall Length (OAL) | 54 mm | Reduced Diameter (D2) | 14 mm |
| Body Length_2 (LB_2) | 26 mm | Body Material | Steel |
| Application | | Collets & Accessories | | Unit | M |
Product Features
| Family Description | SK Pull stud with DIN 69872 retention knob | FamilyName | PS SK-DIN (PULL STUD) |

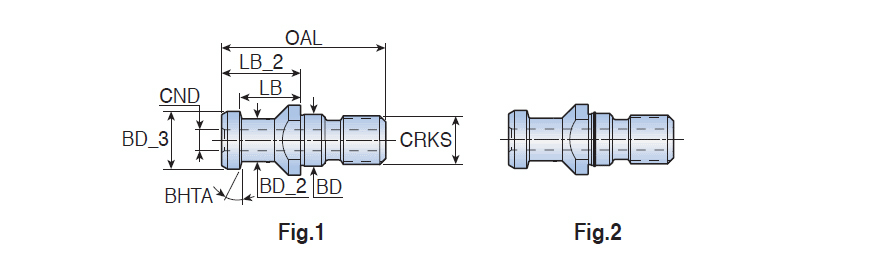

| Remarks | Coolant holes only in items with a "B" suffix Fig. 2: With external O ring | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
0.0750
Name

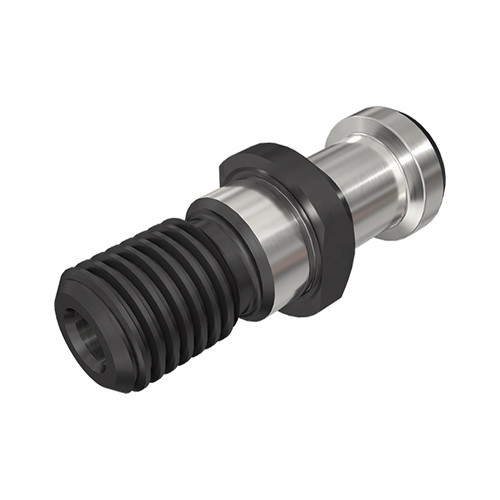

Pull Studs (Retention Knobs)
FamilyName
PS SK-DIN (PULL STUD)
BrandName
Taegutec
