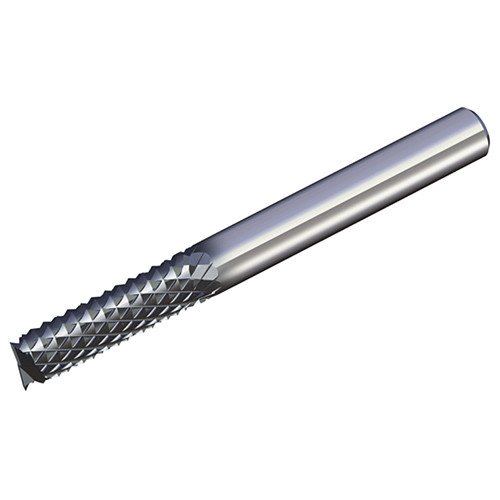

RCFE 100 TTD610
Multi-flute router end mills for roughing of composite materials with high productivity by low cutting force

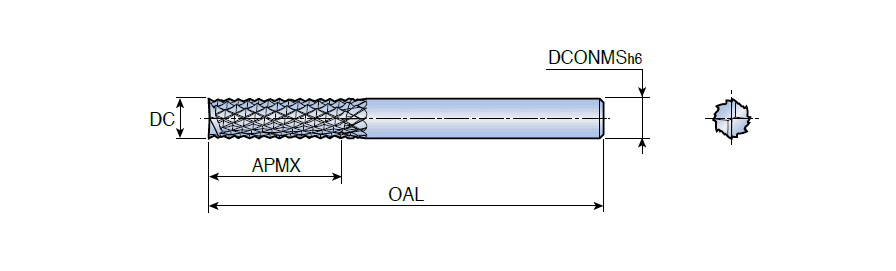

| Cutting Diameter (DC) | 10 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 30 mm | Application | | Edging | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 85 mm | Grade | TTD610 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Diamond | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Multi-flute router end mills for roughing of composite materials with high productivity by low cutting force | FamilyName | RCFE |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0980
Name
Square & Corner Radius End Mills
FamilyName
RCFE
BrandName
Taegutec
