HSR 2015 010 120 TT5505

Name: HSR 2015 010 120 TT5505
Brand: RHINOSOLID
SKU: TTK6127176
Price: 91.19 AUD
Availability: InStock

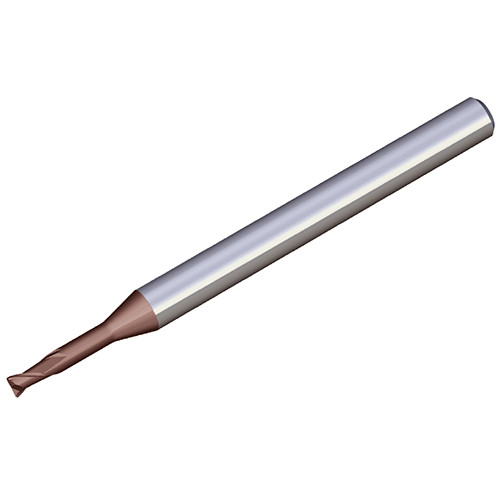

High precision solid carbide end mills of corner R type with long neck & 2 flute for high speed machining of hardened steel & pre-hardened steel

Item # TTK6127176

Brand: Taegutec

Mfr#: 6127176

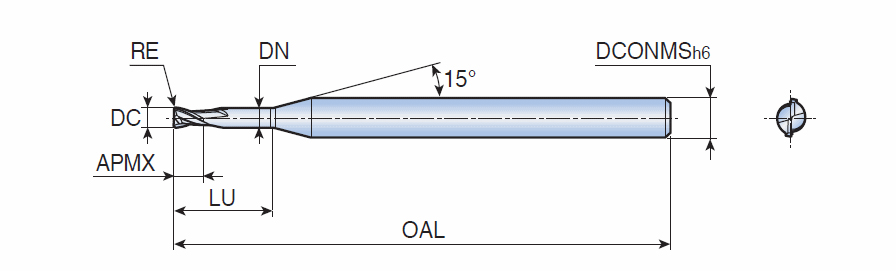

Cutting Diameter (DC)	1.5 mm	Usable Length (LU)	12 mm
Connection Diameter Machine Side (DCONMS)	4 mm	Applicable Material	\| Steel \| Hard Materials \|
Depth of Cut Maximum (APMX)	2.5 mm	Application	\| Drill Mill \| Helical Interpolation \| Rampdown \| Shouldering \| Slotting \| Solid Carbide End Mills \| Step down machining \|
Overall Length (OAL)	50 mm	Corner Radius (RE)	0.1 mm
Cutting Edge Material	Carbide	Grade	TT5505
Coating	AlTiN	Neck Diameter (DN)	1.43
Flute Count (NOF)	2	Body Material	Carbide
Flute Helix Angle (FHA)	30 Degrees	Measurement Type	Metric
Shank Type	Round	Unit	M
End Shape	Corner Radius

Product Features

Family Description	High precision solid carbide end mills of corner R type with long neck & 2 flute for high speed machining of hardened steel & pre-hardened steel	FamilyName	‎HSR 2 (0.3-4.0)
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0105

Name

Square & Corner Radius End Mills

FamilyName

‎HSR 2 (0.3-4.0)

BrandName

Taegutec
