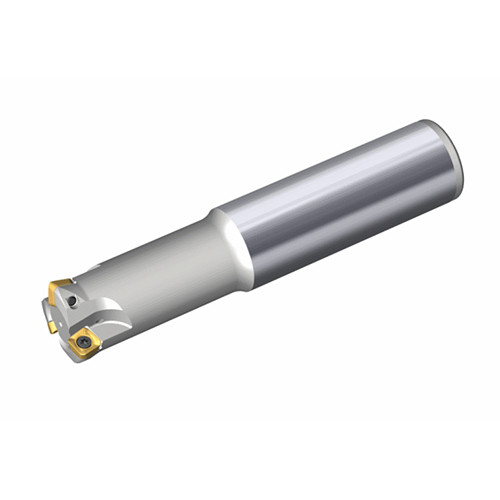

TESB 225-25-09-L150
High feed end mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm

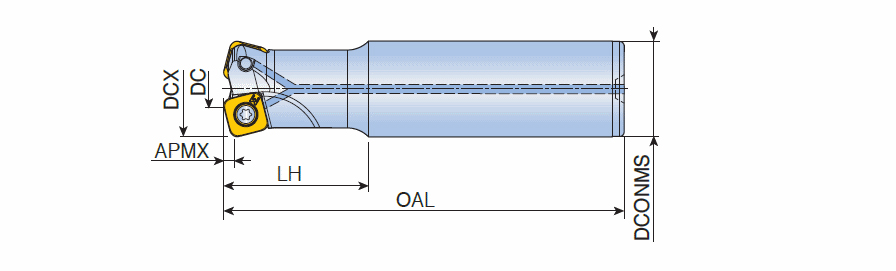

| Cutting Diameter (DC/DCX) | 25 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 25 mm | Master Insert Identification (MIID) | SBMT 090415R-M |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 70 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
Product Features
| Family Description | High feed end mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm | FamilyName | TESB-09-L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.5450
Name
Indexable End Mills
FamilyName
TESB-09-L
BrandName
Taegutec
