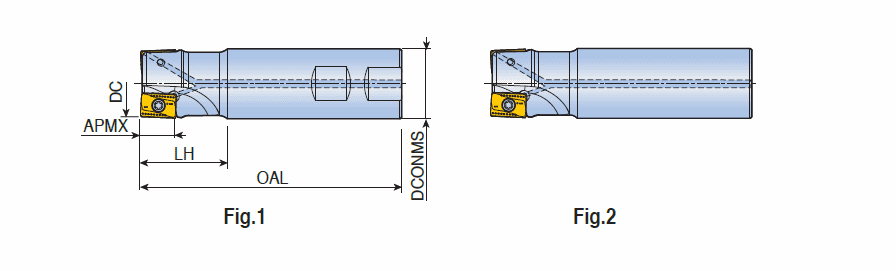

| Cutting Diameter (DC/DCX) | 25 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 25 mm | Master Insert Identification (MIID) | ANHX 110608R-M |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 40 mm |
| Depth of Cut Maximum (APMX) | 11.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features

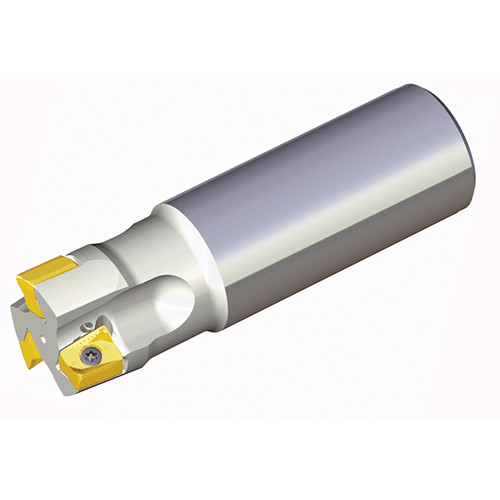

| Family Description | 90° End mills with four helical cutting edges of double-sided inserts AN 11 | FamilyName | TE90AN-11 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7650
Name
Indexable End Mills
FamilyName
TE90AN-11
BrandName
Taegutec
