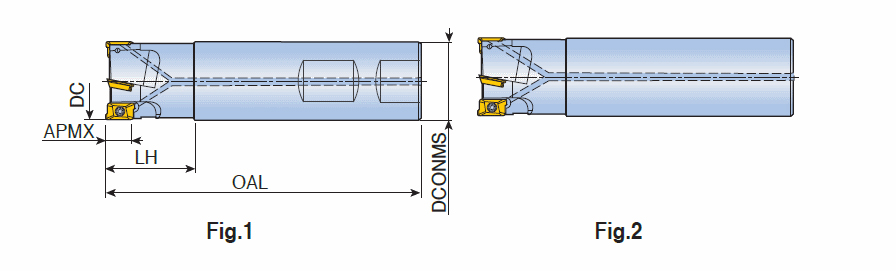

| Cutting Diameter (DC/DCX) | 15 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Diameter (DC) | 15 mm | Master Insert Identification (MIID) | AXMT 0602 PER-EM |
| Cutting Item Count (CICT) | 4 | Head Length (LH) | 18 mm |
| Depth of Cut Maximum (APMX) | 5.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 90° End mills with high positive two helical cutting edges inserts of AXMT 06 for small part machining | FamilyName | TE90AX-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1300
Name
Indexable End Mills
FamilyName
TE90AX-06
BrandName
Taegutec
