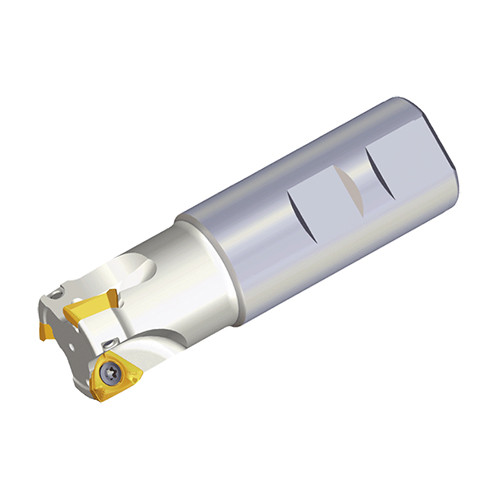

3P TE90-220-19-10-L170
90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 10

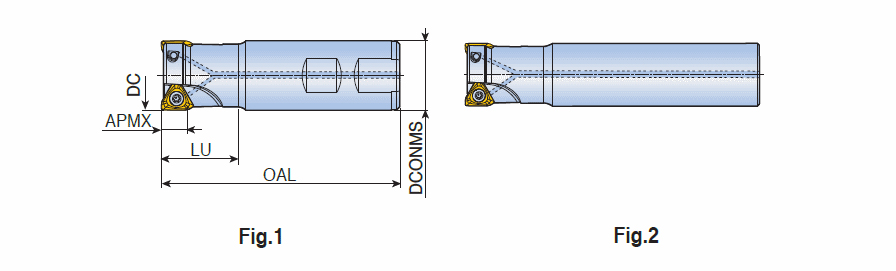

| Cutting Diameter (DC/DCX) | 20 mm | Connection Diameter Machine Side (DCONMS) | 19 mm |
| Cutting Diameter (DC) | 20 mm | Master Insert Identification (MIID) | 3PKT 100408R-M |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 30 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 170 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 10 | FamilyName | 3P TE90-10 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.4150
Name
Indexable End Mills
FamilyName
3P TE90-10
BrandName
Taegutec
