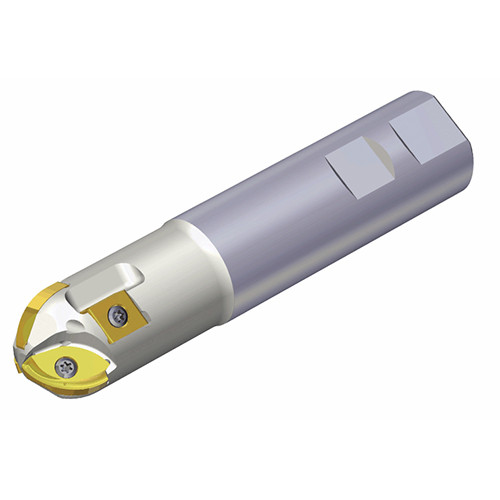

3F 50-80-W50-250
Three effective ball nose end mills with Weldon shank and unique doubles-sided inserts of 3FB for higher productivity in diameters of 32 & 50 mm

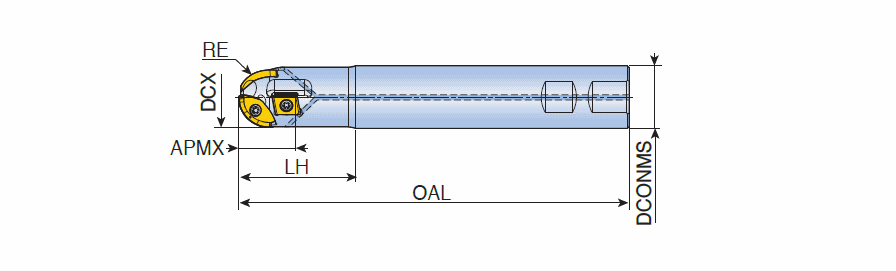

| Cutting Diameter (DC/DCX) | 50 mm | Connection Diameter Machine Side (DCONMS) | 50 mm |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | 3FB500C-M |
| Cutting Item Count (CICT) | 1 | Head Length (LH) | 110 mm |
| Depth of Cut Maximum (APMX) | 80 mm | Measurement Type | Metric |
| Overall Length (OAL) | 250 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
| Application | | Helical Interpolation | Profiling | Rampdown | |
Product Features
| Family Description | Three effective ball nose end mills with Weldon shank and unique doubles-sided inserts of 3FB for higher productivity in diameters of 32 & 50 mm | FamilyName | 3F 32/50-W |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
3.2050
Name
Indexable End Mills
FamilyName
3F 32/50-W
BrandName
Taegutec
