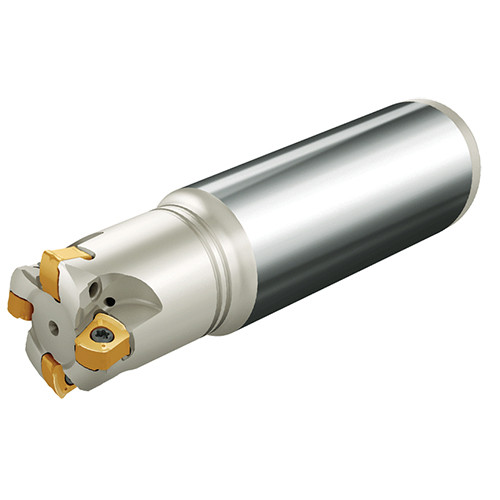

TEBLV 425-25-06-L140
End mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling

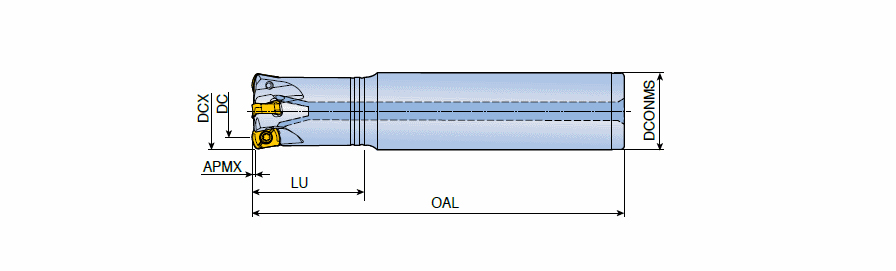

| Cutting Diameter (DC/DCX) | 25 mm | Overall Length (OAL) | 1 mm |
| Cutting Diameter (DC) | 17 mm | Master Insert Identification (MIID) | BLMV 0603R-M |
| Cutting Diameter Maximum (DCX) | 25 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Step down machining | |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
Product Features
| Family Description | End mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling | FamilyName | TEBLV-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.5000
Name
Indexable Face Mills
FamilyName
TEBLV-06
BrandName
Taegutec
