2S-TFM90AP 1080-27R-09

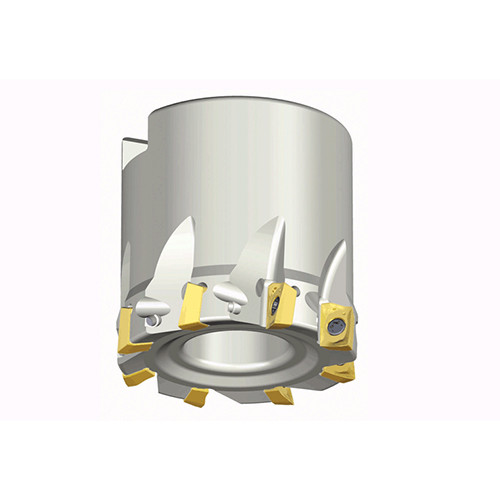

90° Face mills with high positive two helical cutting edges of APKT 09 inserts

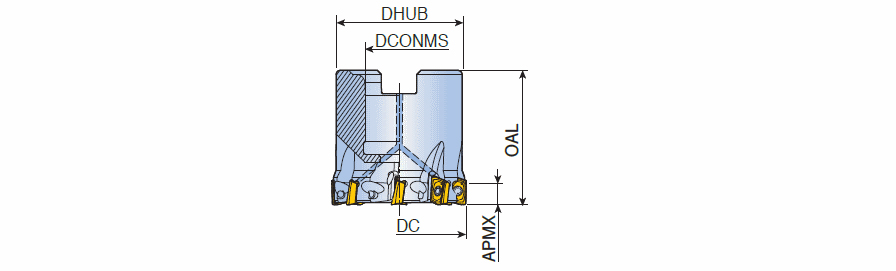

| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | APKT 09T3 PER-EM |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 8.8 mm | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with high positive two helical cutting edges of APKT 09 inserts | FamilyName | 2S-TFM90AP-R-09 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.5700
Name
Indexable Face Mills
FamilyName
2S-TFM90AP-R-09
BrandName
Taegutec
