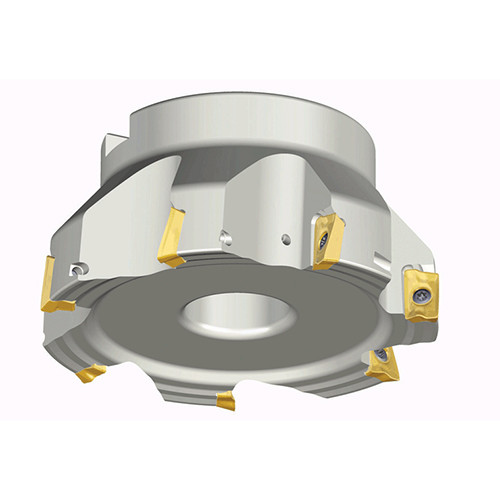

TFM90AP 780-27R-17
90° Face mills with high positive two helical cutting edges inserts of AP.. 17

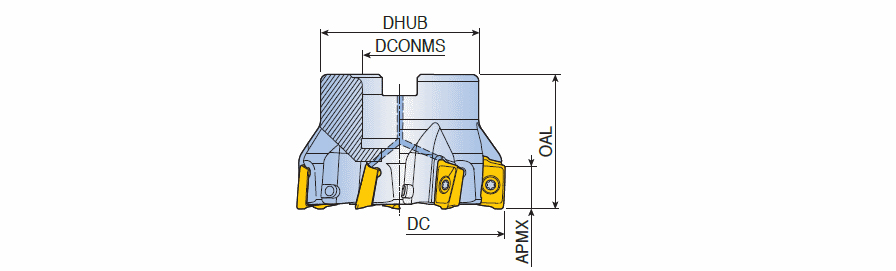

| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | APKT 1705 PER-EM |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 16.1 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with high positive two helical cutting edges inserts of AP.. 17 | FamilyName | TFM90AP-R-17/17-B |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.6150
Name
Indexable Face Mills
FamilyName
TFM90AP-R-17/17-B
BrandName
Taegutec
