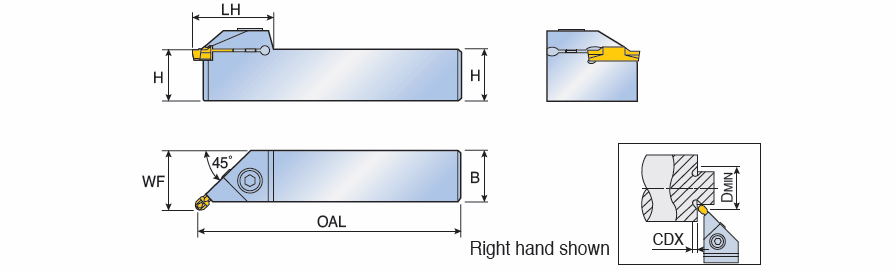

| Cutting Depth Maximum (CDX) | 2.8 mm | Overall Length (OAL) | 150 mm |
| Shank Height (H) | 25 mm | Application | | Ext. Undercut | |
| Minimum Bore Diameter (DMIN) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 28.3 mm | Measurement Type | Metric |
| Head Length (LH) | 30 mm | Unit | M |
Product Features
| Family Description | External 45° holders for undercutting | FamilyName | TGEUR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7000
Name

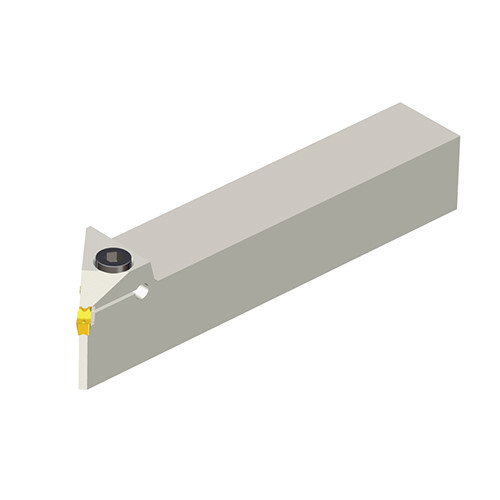

Groove/Turn Indexable Holders
FamilyName
TGEUR/L
BrandName
Taegutec
