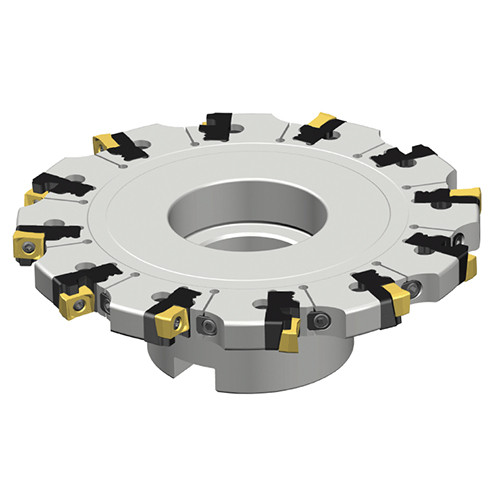

TSM 315FF-S-60R-ZN14
Adjustable slotting cutters with ZNHU inserts in flange type

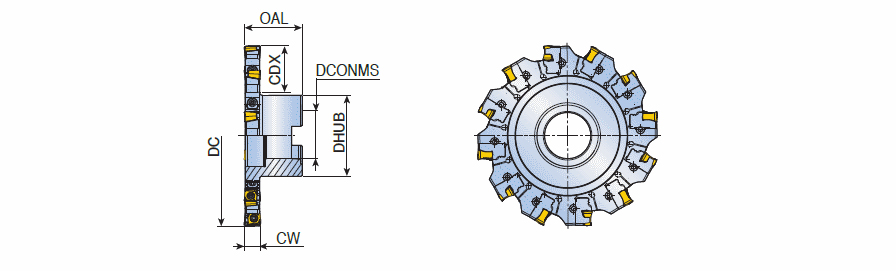

| Cutting Diameter (DC) | 315 mm | Flute Count (NOF) | 20 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 Tooth | Overall Length (OAL) | 50 mm |
| Cutting Depth Maximum (CDX) | 90 mm | Application | | Bottom Shouldering | Side Slotting | T Slotting | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Arbor Style | B |
| Hub Diameter (DHUB) | 130 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 23 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 20 mm | Unit | M |
Product Features
| Family Description | Adjustable slotting cutters with ZNHU inserts in flange type | FamilyName | TSM-FF-S/W-ZN08/11/14 |
| Remarks | Cutters are set at the minimum width of cut range, unless specific width is not ordered | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
16.2000
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FF-S/W-ZN08/11/14
BrandName
Taegutec
