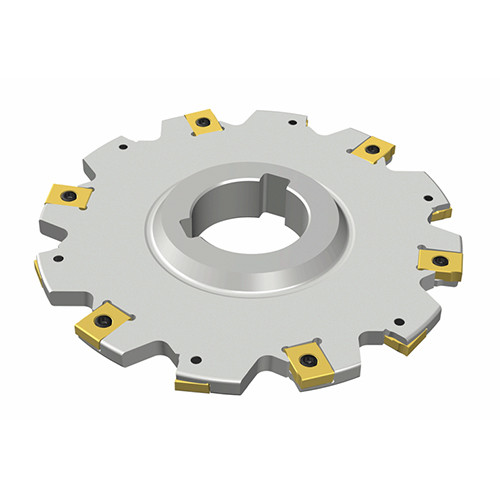

TSM 250FD-09-50N-Z048
Fixed pocket disc type slotting cutters with ZNHT inserts

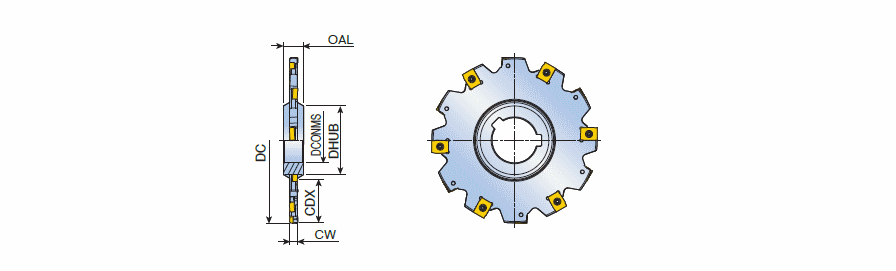

| Cutting Diameter (DC) | 250 mm | Cutting Width (CW) | 9 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 Tooth | Flute Count (NOF) | 24 |
| Cutting Depth Maximum (CDX) | 88.5 mm | Application | | Bottom Shouldering | Side Slotting | Slitting | |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 69 mm | Body Material | Steel |
| Hub Thickness (THUB) | 12 mm | Unit | M |
Product Features
| Family Description | Fixed pocket disc type slotting cutters with ZNHT inserts | FamilyName | TSM-FD-Z. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
2.5550
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FD-Z.
BrandName
Taegutec
