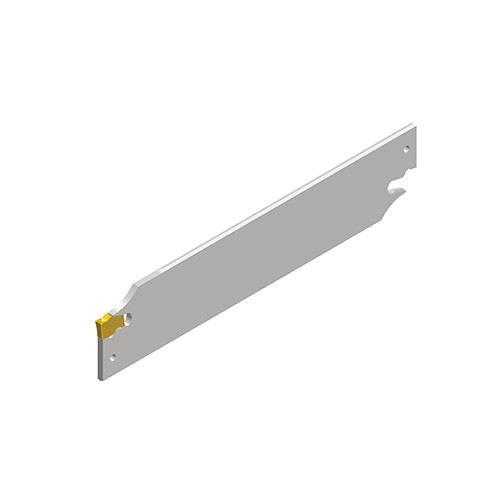

SFGB 32-1.6
Double-ended blades with SFC/J rigid single-ended inserts for parting & deep grooving

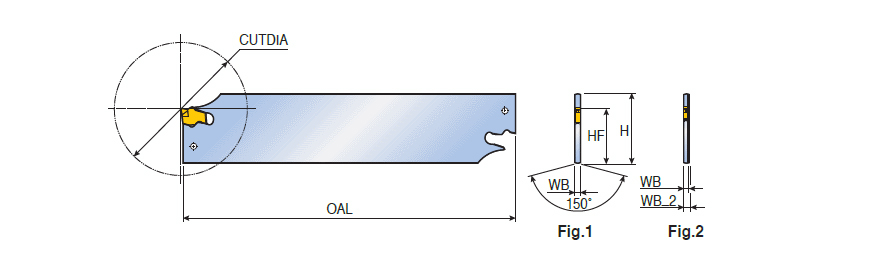

| Shank Height (H) | 32 mm | Cutting Direction (HAND) | Neutral |
| Body Width (WB) | 1.3 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Insert Seat Size Code (SSC) | 1 |
| Application | | Ext. Grooving | Parting | | Master Insert Identification (MIID) | SFC 1.6 |
| Body Material | Steel | Unit | M |
| Work Piece Parting Diameter Maximum (CUTDIA) | 38 mm |
Product Features
| Family Description | Double-ended blades with SFC/J rigid single-ended inserts for parting & deep grooving | FamilyName | SFGB |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0950
Name
Parting Off Indexable Holders
FamilyName
SFGB
BrandName
Taegutec
